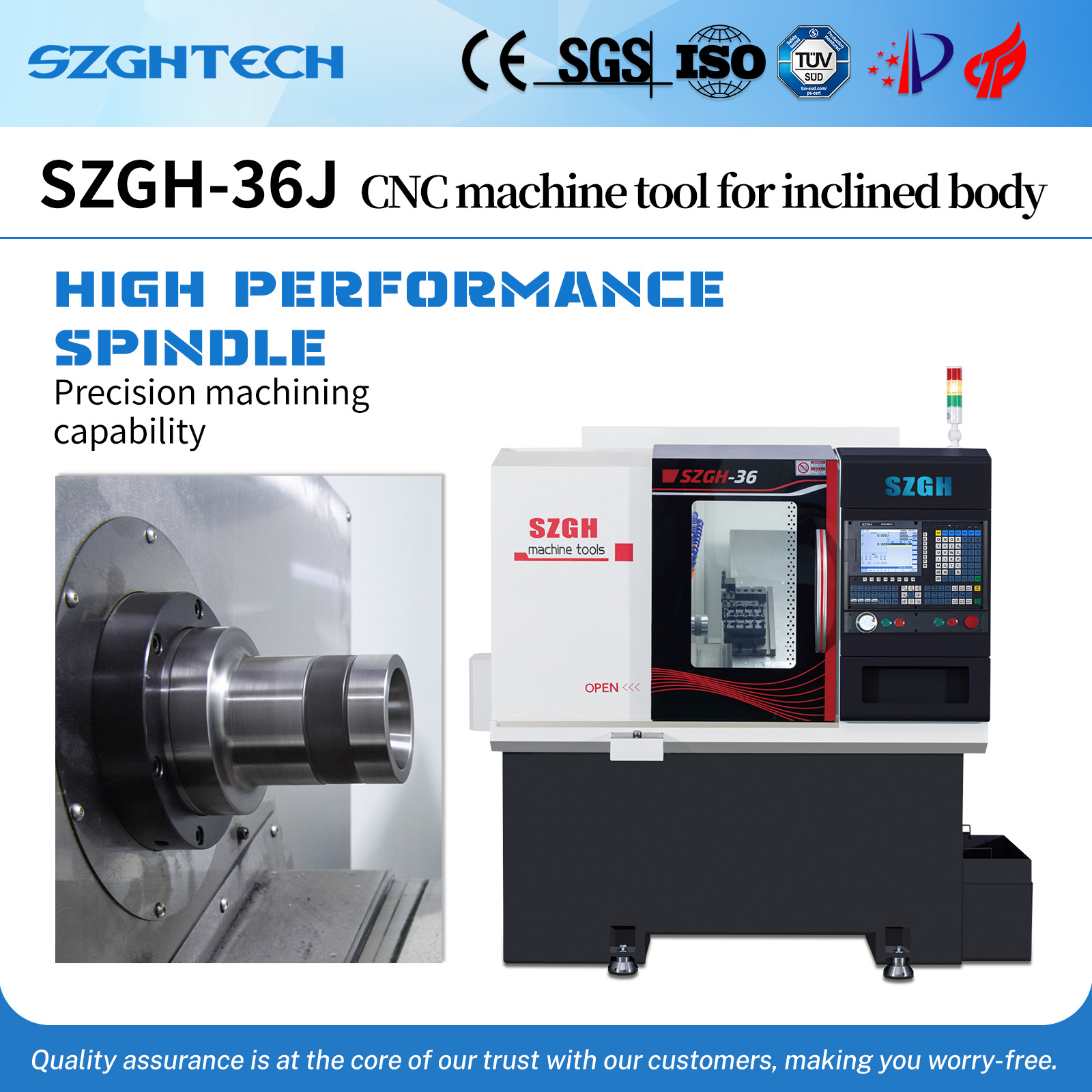

The Function of Adding a Chuck to an SZGH-36J Lathe

The Main Functions of Adding a Chuck to a CNC Lathe

1. Securely Clamping the Workpiece, Laying the Foundation for Lathe Machining

The primary function of adding a chuck to an SZGH-36J lathe is to provide a secure clamping force for the workpiece. During lathe machining, the high-speed spindle rotation drives the workpiece in sync. At this point, the chuck's evenly distributed jaws firmly grip the workpiece, generating a strong radial clamping force. This clamping force effectively resists external forces such as cutting and centrifugal forces generated during machining, preventing the workpiece from loosening, shifting, or even flying out. Whether machining common round bars, square steel blocks, or irregular workpieces with complex curves, the chuck flexibly adjusts the jaw position based on the workpiece's shape, ensuring that workpieces of varying shapes are securely fixed to the lathe spindle, providing a solid foundation for subsequent turning operations.

2. Ensure Coaxiality and Improve Lathe Processing Precision

Processing accuracy is a core performance indicator for lathe machining, and coaxiality is a key factor influencing this accuracy. Equipped with a chuck, the SZGH-36J lathe utilizes a precise positioning mechanism to ensure that the workpiece's rotation center is highly aligned with the lathe spindle's rotation center, effectively ensuring workpiece coaxiality. During workpiece clamping, the operator can fine-tune the workpiece's positioning by adjusting the chuck's jaws, eliminating eccentricity caused by initial placement deviations. This precise positioning capability significantly reduces machining errors caused by center deviation when machining workpieces such as stepped shafts and sleeves, which require consistent coaxiality at all stages. This significantly improves the workpiece's dimensional and positional accuracy, ensuring that the machined parts meet high-precision assembly requirements.

3. Shorten setup time and improve lathe processing efficiency

In mass production, processing efficiency directly impacts both production schedule and cost. Equipping the SZGH-36J lathe with a chuck significantly reduces workpiece setup time, thereby improving overall processing efficiency. Traditional clamping methods may require tedious adjustments and fixturing steps, but the chuck's convenient operation allows operators to quickly place, clamp, and release workpieces. For the same type of workpiece, the chuck can quickly clamp batches of workpieces by adjusting the jaw position once, eliminating the time-consuming process of repeated adjustments. Furthermore, some chucks feature an automatic centering function, automatically positioning the workpiece during the clamping process. This further reduces manual adjustment time, allowing the lathe to process more workpieces per unit time and effectively improving production efficiency.

3. Flexible Adjustment to Adapt to Diverse Lathe Processing Requirements

The SZGH-36J lathe encounters a variety of workpiece types and specifications in actual processing, requiring diverse clamping methods. The addition of a chuck provides greater adaptability for lathes, enabling them to meet a wide range of complex machining requirements. The chuck's jaws can be flexibly adjusted to suit workpiece size, ensuring a suitable clamping method for both small precision parts and larger workpieces. For workpieces with unusual shapes, specialized jaws or accessories like faceplates can be used for reliable clamping. Furthermore, the chuck's clamping force can be adjusted to suit machining requirements, ensuring workpiece stability while preventing deformation caused by excessive clamping force. This makes it particularly suitable for machining thin-walled parts and easily deformable materials, enabling the lathe to handle a wider range of machining tasks.

4. Ensure operational safety and strengthen lathe processing capabilities

During lathe machining, the high-speed spindle rotation imparts significant kinetic energy to the workpiece. If the workpiece becomes loose or flies out, it poses a serious safety hazard to the operator and equipment. The addition of a chuck to the SZGH-36J lathe provides reliable, secure workpiece support through strong and stable clamping force. The chuck's structural design has undergone rigorous safety testing and maintains a secure grip on the workpiece even during high-speed lathe operation, effectively preventing the workpiece from falling due to centrifugal force or excessive cutting forces. Furthermore, the chuck's protective device prevents the operator from accidentally touching rotating parts during machining, further enhancing operational safety. This reliable safety feature allows operators to perform machining operations with greater peace of mind, reduces the risk of accidents, and provides a strong safety barrier for the lathe process.

The addition of a chuck to the SZGH-36J lathe plays a vital role in firmly clamping the workpiece, ensuring machining accuracy, improving machining efficiency, adapting to diverse machining requirements, and ensuring operational safety. It is a key feature that enhances the lathe's overall performance.
